4-2153161-1 | C7 OUT PR4 S/FTP PE/LSZH BLK 23 SOL 500

  • Available in:
  • EMEA

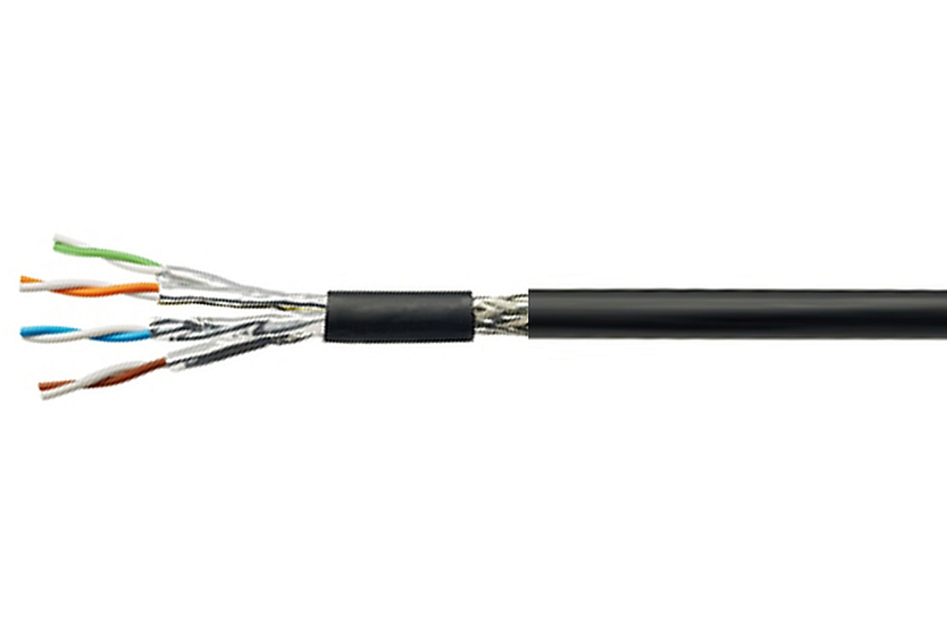

Copper Cable, category 7, S/FTP, 4-pair, 23 AWG, black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability EMEA
Portfolio NETCONNECT®
Product Type Twisted pair cable

General Specifications

ANSI/TIA Category 7
Cable Component Type Horizontal
Cable Type S/FTP (shielded)
Conductor Type, singles Solid
Conductors, quantity 8
Jacket Color Black
Pairs, quantity 4
Transmission Standards CENELEC EN 50288-4-1 | IEC 61156-5 Cat 7 | ISO/IEC 11801 Class F

Dimensions

Cable Length 500 m | 1640.42 ft
Diameter Over Jacket, nominal 9.652 mm | 0.38 in
Conductor Gauge, singles 23 AWG

Electrical Specifications

Characteristic Impedance 100 ohm
Characteristic Impedance Tolerance ±15 ohm
Mutual Capacitance at Frequency 4.1 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP) 82 %
Operating Frequency, maximum 600 MHz
Operating Voltage, maximum 80 V
Safety Voltage Rating 240 V

Material Specifications

Conductor Material Bare copper
Insulation Material Polyolefin
Jacket Material PE
Inner Jacket Material Low Smoke Zero Halogen (LSZH)

Environmental Specifications

Installation temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
EN50575 CPR Cable EuroClass Fire Performance Fca
Environmental Space UV resistant for outdoor and Low Smoke Zero Halogen

Packaging and Weights

Cable weight 0.089 kg/km | 0.06 lb/kft
Packaging Type Reel

Regulatory Compliance/Certifications

Agency Classification
CENELEC EN 50575 compliant, Declaration of Performance (DoP) available
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
