DHK-158-6-P

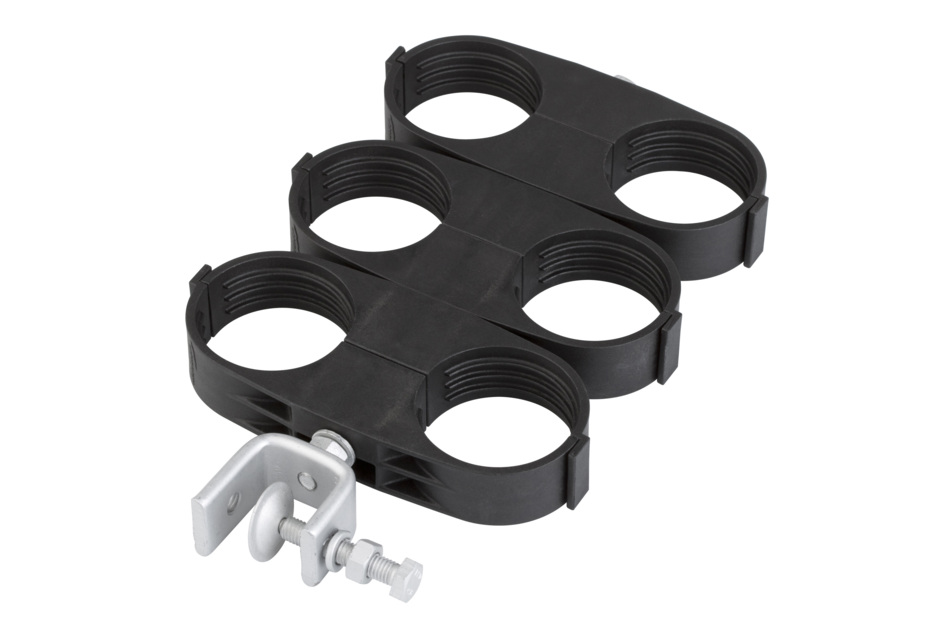

Double Hanger Kit for 1-5/8 in coaxial cable, triple stack; includes hardware and angle adapter
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Product Type Hanger kit
Product Brand ValuSite™
Ordering Note CommScope® standard product in Mexico, Central America, and South America | CommScope® standard product in Europe, the Middle East, and Africa

General Specifications

Cables per Hanger 6
Color Black
Hanger Type Composite clamp
Mounting M8 hardware

Dimensions

Height 9.32 in | 236.728 mm
Maximum Stack Height 3
Width 1.02 in | 25.908 mm
Length 5.69 in | 144.526 mm
Compatible Diameter, maximum 2 in | 50.8 mm
Compatible Diameter, minimum 1.93 in | 49.022 mm
Nominal Size 1-5/8 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type Stainless steel | Engineered plastic

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 38.1 cm | 15 in
Width, packed 38.1 cm | 15 in
Length, packed 7.6 cm | 2.992 in
Included Angle adapter | Hardware
Packaging quantity 1
Weight, gross 0.42 kg | 0.926 lb

Product Classification

Product Type Hanger kit
Product Brand ValuSite™
Ordering Note CommScope® standard product in Mexico, Central America, and South America | CommScope® standard product in Europe, the Middle East, and Africa

General Specifications

Cables per Hanger 6
Color Black
Hanger Type Composite clamp
Mounting M8 hardware

Dimensions

Height 9.32 in | 236.728 mm
Maximum Stack Height 3
Width 1.02 in | 25.908 mm
Length 5.69 in | 144.526 mm
Compatible Diameter, maximum 2 in | 50.8 mm
Compatible Diameter, minimum 1.93 in | 49.022 mm
Nominal Size 1-5/8 in

Electrical Specifications

Return Loss Effect 0.1 dB
DTF Effect 0.1 dB

Material Specifications

Material Type Stainless steel | Engineered plastic

Mechanical Specifications

Vibration Survival ≥4 hours at resonant frequency

Environmental Specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance, minimum with no degredation ≥500 hours in salt spray chamber
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥100 hours exposure in accelerated UV life chamber

Packaging and Weights

Height, packed 38.1 cm | 15 in
Width, packed 38.1 cm | 15 in
Length, packed 7.6 cm | 2.992 in
Included Angle adapter | Hardware
Packaging quantity 1
Weight, gross 0.42 kg | 0.926 lb
