31768A-M

Base Product: ANGLE-ADAPTER-SERIES

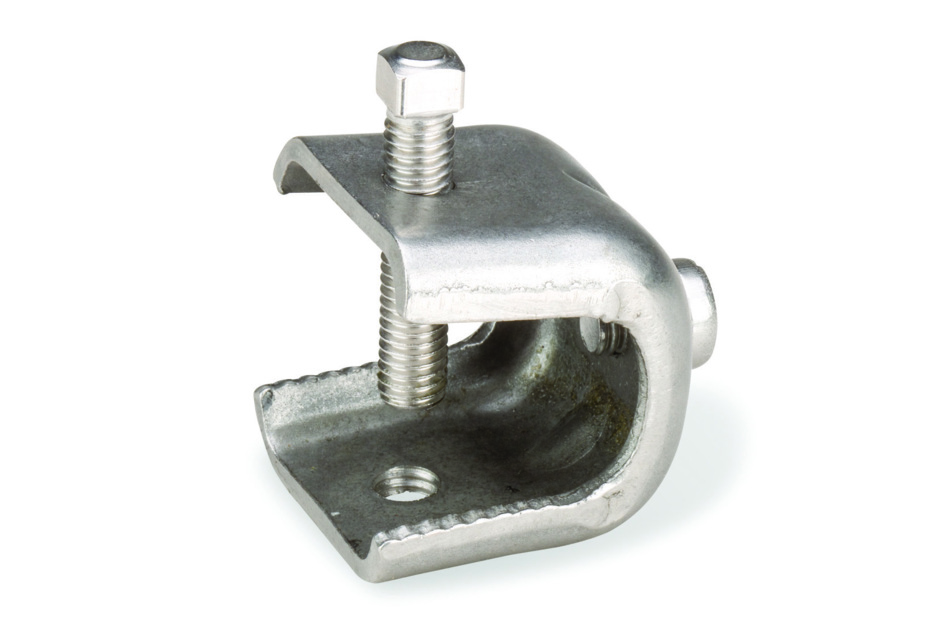

Angle Adapter, standard, M10 tapped hole

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Product Type Adapter
Product Brand HELIAX®
Ordering Note CommScope® non-standard product

General Specifications

Adapter Type Angle adapter
Mounting M10 tapped hole

Dimensions

Inside Width 22.352 mm | 0.88 in
Outside Width 49.784 mm | 1.96 in
Inside Length 22.352 mm | 0.88 in
Outside Length 44.958 mm | 1.77 in
Material Thickness 4.191 mm | 0.165 in

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Installation Torque, maximum 20.337 N-m | 15 ft lb
Installation Torque, minimum 14.914 N-m | 11 ft lb
Maximum Loading Triple stack, 1-5/8 in cable

Packaging and Weights

Height, packed 14.2 cm | 5.591 in
Width, packed 14.2 cm | 5.591 in
Length, packed 10.2 cm | 4.016 in
Packaging quantity 10
Weight, gross 2.33 kg | 5.137 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Product Type Adapter
Product Brand HELIAX®
Ordering Note CommScope® non-standard product

General Specifications

Adapter Type Angle adapter
Mounting M10 tapped hole

Dimensions

Inside Width 22.352 mm | 0.88 in
Outside Width 49.784 mm | 1.96 in
Inside Length 22.352 mm | 0.88 in
Outside Length 44.958 mm | 1.77 in
Material Thickness 4.191 mm | 0.165 in

Material Specifications

Material Type Stainless steel

Mechanical Specifications

Installation Torque, maximum 20.337 N-m | 15 ft lb
Installation Torque, minimum 14.914 N-m | 11 ft lb
Maximum Loading Triple stack, 1-5/8 in cable

Packaging and Weights

Height, packed 14.2 cm | 5.591 in
Width, packed 14.2 cm | 5.591 in
Length, packed 10.2 cm | 4.016 in
Packaging quantity 10
Weight, gross 2.33 kg | 5.137 lb

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
